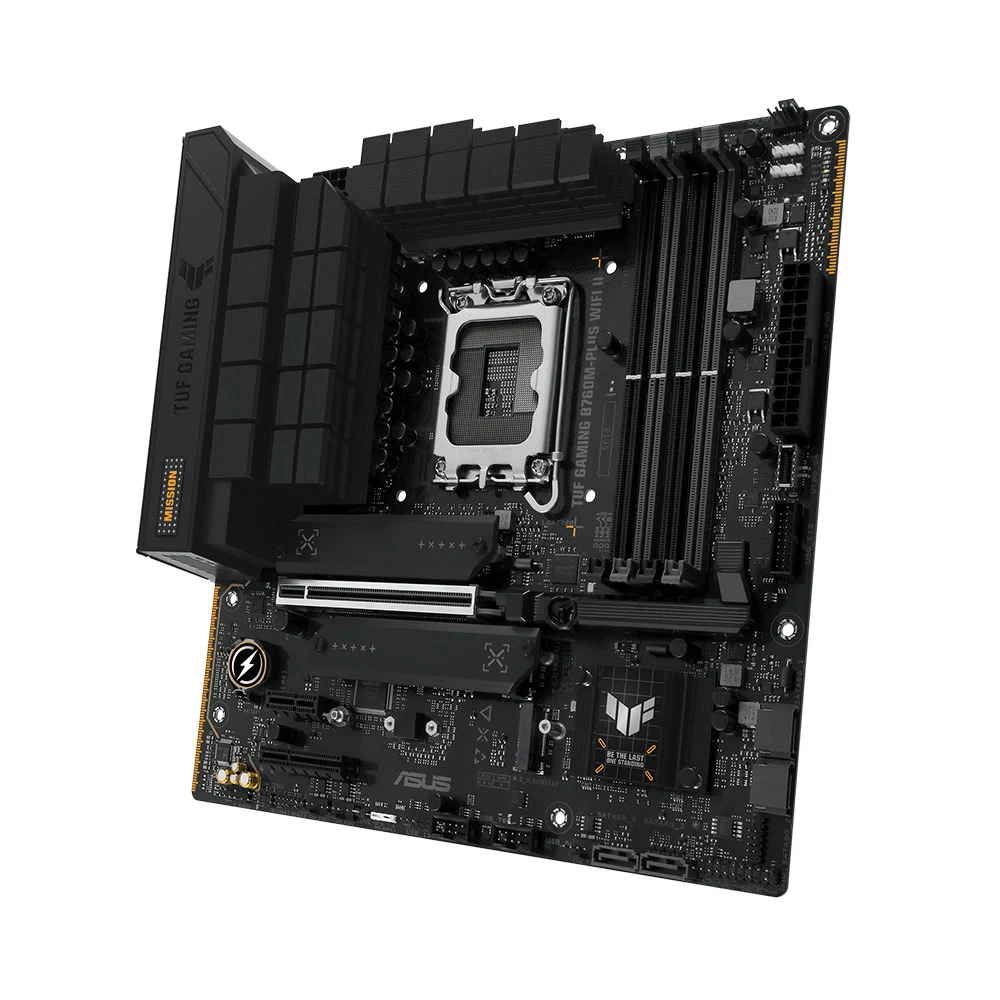

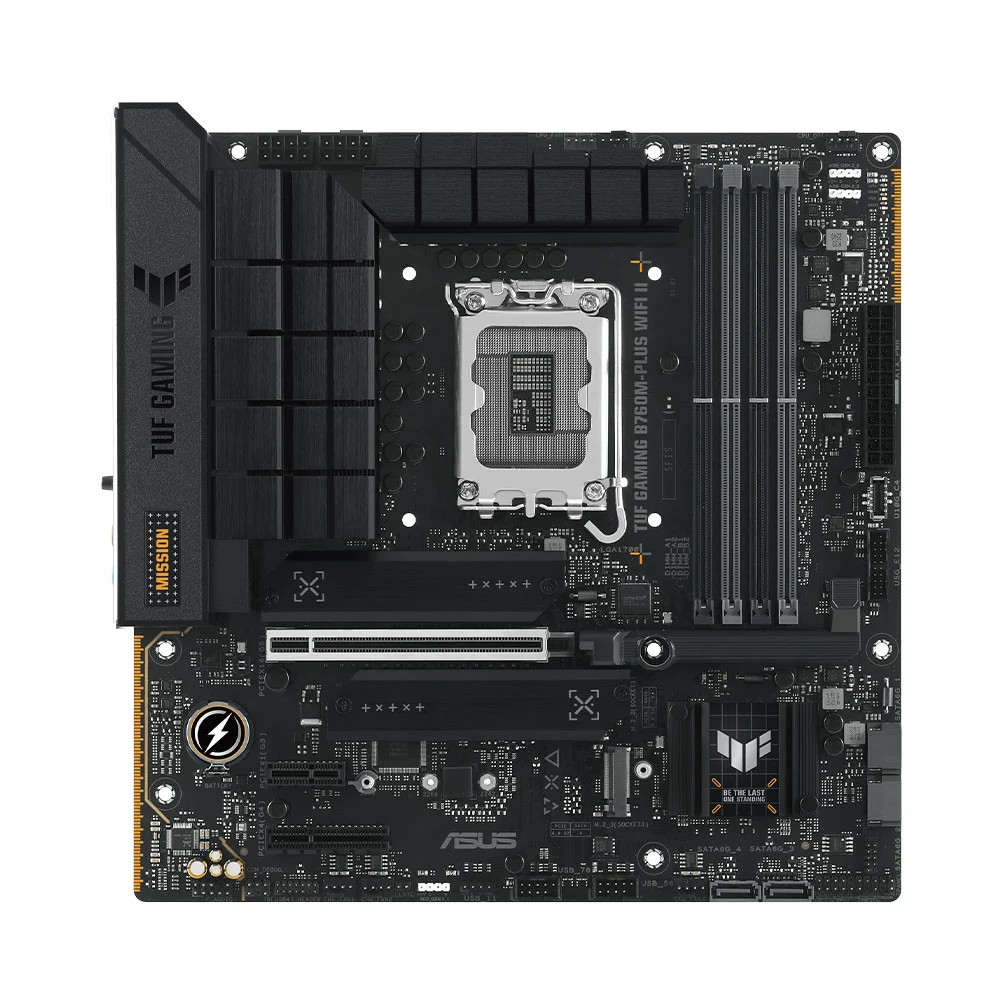

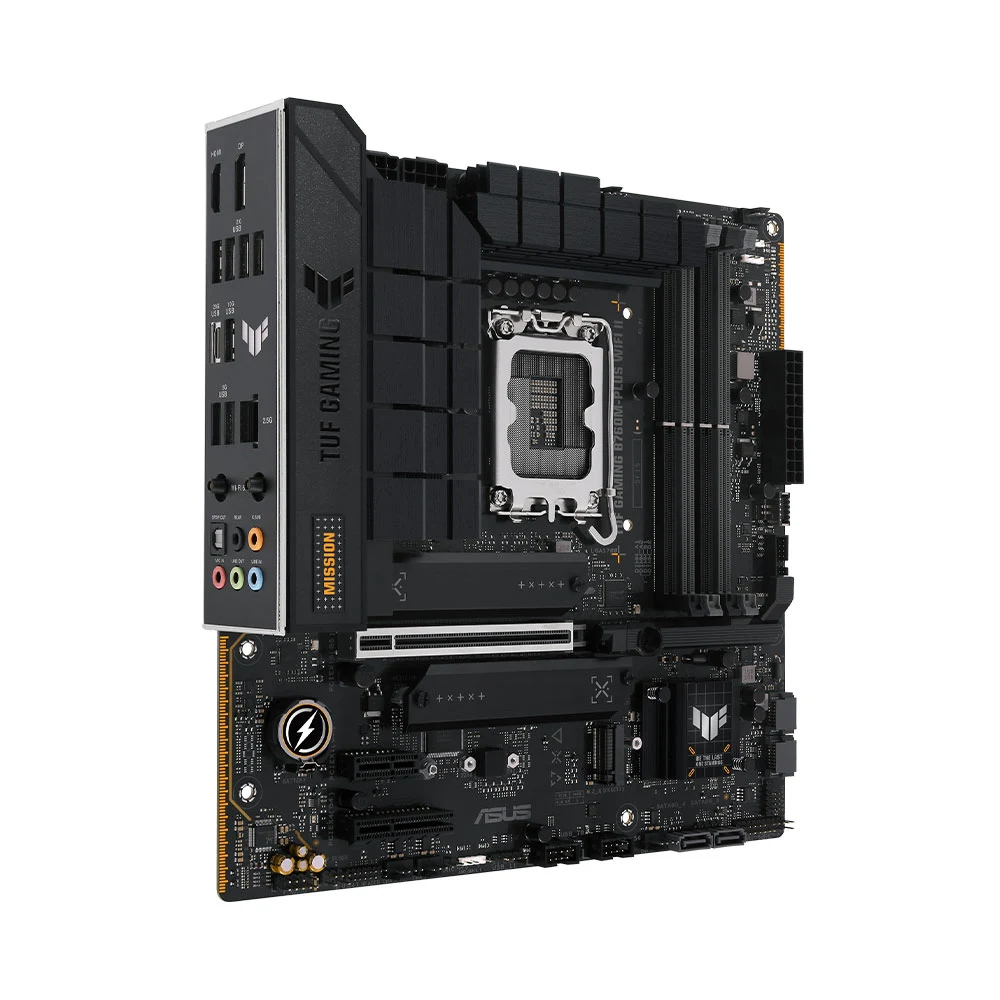

Bảng thông số kỹ thuật: Mainboard Asus TUF gaming B760M-Plus Wifi II DDR5
Thông số
Chi tiết
Chipset
Intel® B760 Chipset
CPU
Socket LGA1700, hỗ trợ Intel® Core™ thế hệ 12, 13, 14, Pentium® Gold, Celeron®.
Bộ nhớ (RAM)
4 khe DDR5, hỗ trợ tối đa 192GB, bus RAM từ 5400MHz đến 7800+ MHz (OC).
Card màn hình/ đồ hoạ
1 x DisplayPort
1 x HDMI™port
Khe cắm mở rộng
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
Âm thanh
Realtek 7.1 Surround Sound High Definition Audio CODEC
Lưu trữ
4 x SATA 3 6Gb/s 3 x M.2 (SATA/NVMe)
USB
1 x USB Type-C(Tối đa 2) 1 x USB 10Gbps 2 x USB 5Gbps 4 x USB 2.0(Tối đa 7)
Cổng LAN
1 x LAN 2.5Gb/s
Wi-Fi
WiFi 802.11 ax
Bluetooth
Bluetooth® v5.3
Tính năng đèn LED
Q-LED
Hệ điều hành hỗ trợ
Windows® 11, Windows® 10 64 -bit
Phần mềm hỗ trợ
Phần mềm độc quyền của ASUS
BIOS
ROM Flash 128 Mb, BIOS UEFI AMI
Kết nối I/O nội bộ
1 x đầu cắm quạt CPU 4 chân
1 x đầu cắm quạt CPU OPT
4 chân 1 x đầu cắm bơm AIO
4 chân 3 x đầu cắm quạt khung máy 4 chân 1 x đầu nối nguồn chính 24 chân
2 x đầu nối nguồn +12V 8 chân 3 x khe cắm M.2 (Key M)
4 x cổng SATA 6Gb/s 1 x đầu nối USB 10Gbps (hỗ trợ USB Type-C ® )
1 x đầu cắm USB 5Gbps hỗ trợ 2 cổng USB 5Gbps bổ sung
3 x đầu cắm USB 2.0 hỗ trợ 5 cổng USB 2.0 bổ sung 3 x đầu cắm Gen 2 có thể định địa chỉ
1 x đầu cắm Clear CMOS
1 x đầu cắm âm thanh mặt trước (AAFP)
1 x đầu cắm bảng hệ thống 20-3 chân có chức năng xâm nhập khung máy
1 x đầu cắm Thunderbolt™ (USB4 ® )

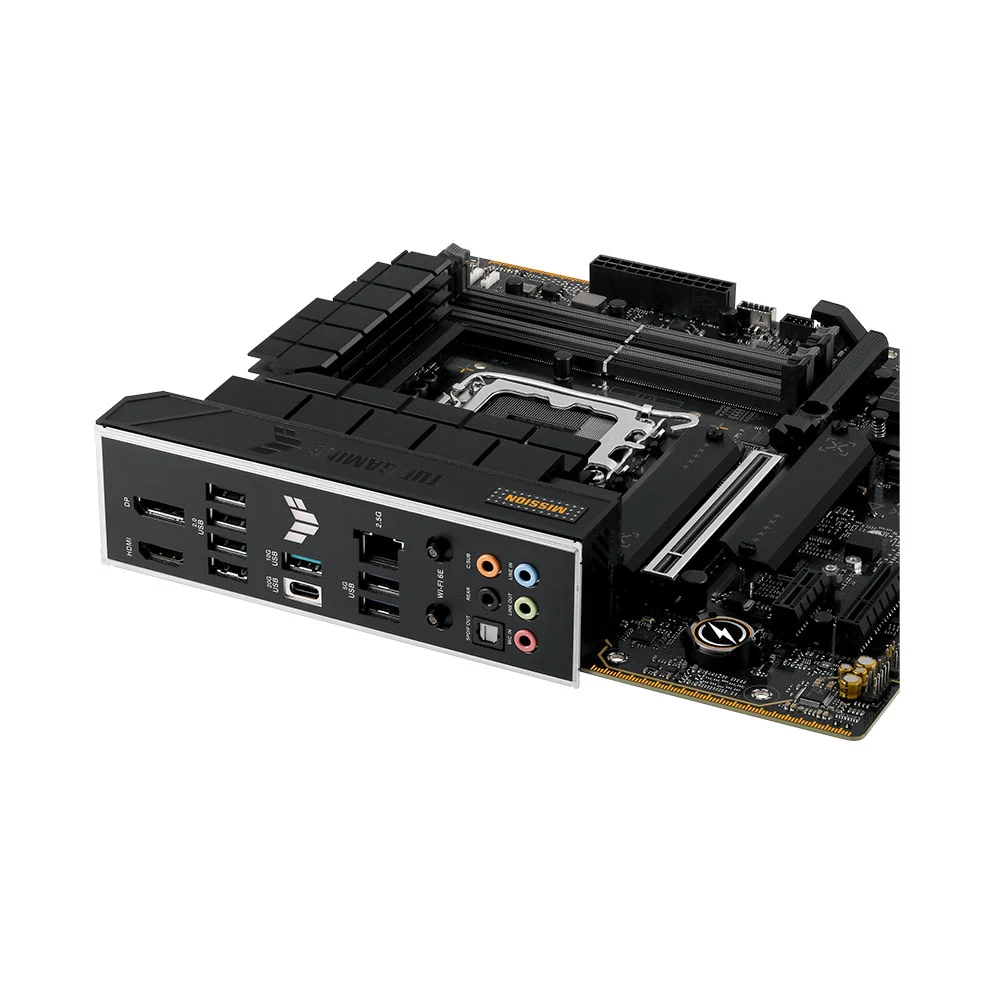

Kết nối I/O phía sau
1 x cổng USB 20Gbps (1 x USB Type-C ® )
1 x cổng USB 10Gbps (1 x Type-A)
2 x cổng USB 5Gbps (2 x Type-A)
4 x cổng USB 2.0 (4 x Type-A)
1 x DisplayPort
1 x cổng HDMI™
1 x Mô-đun Wi-Fi
1 x cổng Ethernet Realtek 2.5Gb
5 x giắc cắm âm thanh
1 x cổng ra quang S/PDIF
Kích thước (Form Factor)
mATX 9,6 inch x 9,6 inch (24,4 cm x 24,4 cm)
Mua Mainboard Asus TUF GAMING B760M-PLUS WIFI II DDR5 – Lựa Chọn Hoàn Hảo
Mainboard Asus TUF GAMING B760M-PLUS WIFI II DDR5 là giải pháp lý tưởng cho các hệ thống PC hiện đại, mang đến hiệu năng mạnh mẽ, kết nối nhanh chóng và khả năng mở rộng linh hoạt. Khi mua tại An Nhiên, bạn không chỉ nhận được chính sách bảo hành chính hãng 36 tháng mà còn tận hưởng các ưu đãi hấp dẫn cùng dịch vụ hỗ trợ tận tình từ đội ngũ chuyên viên.
- Bus RAM hỗ trợ: 7200MHz, 7000MHz, 6800MHz, 6600MHz, 6400MHz, 6200MHz, 6000MHz, 5800MHz, 5600MHz, 5400MHz- Lưu trữ: 4 x SATA 3 6Gb/s, 1 x M.2 SATA/NVMe, 2 x M.2 NVMe - Cổng xuất hình: 1 x DisplayPort, 1 x HDMI
- Kết nối không dây: WiFi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2
